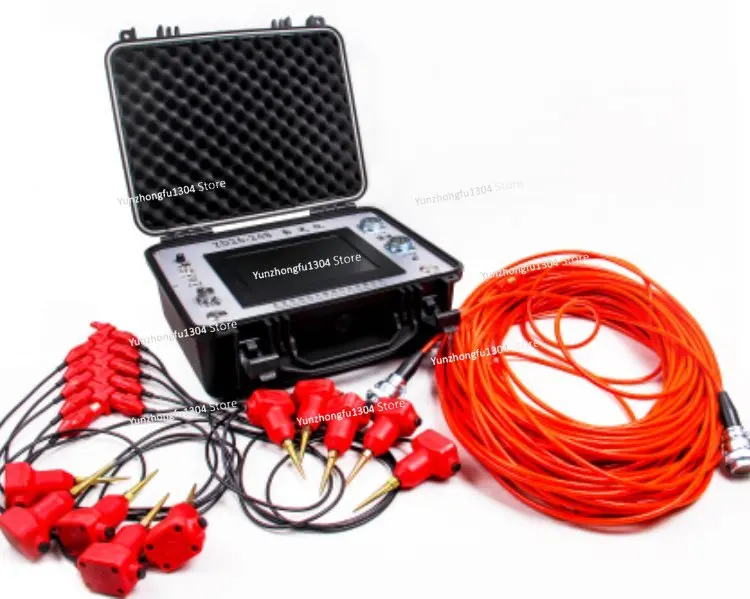

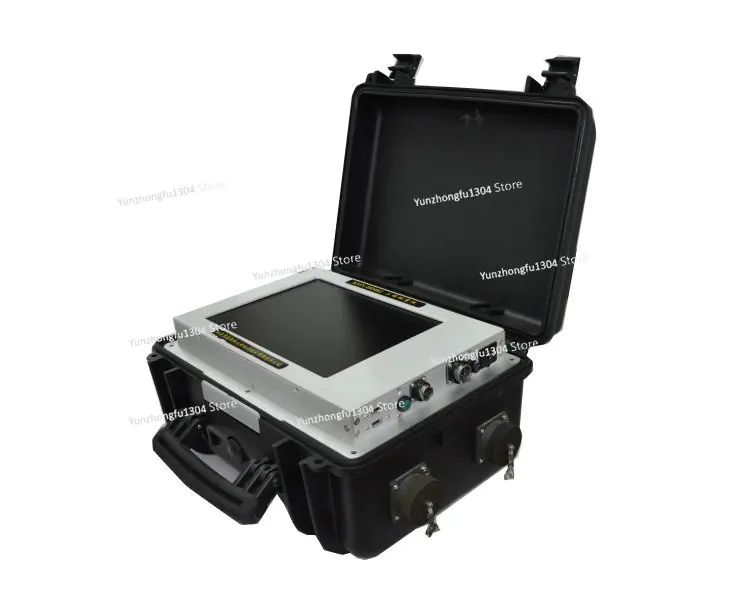

Engineering Digital Seismograph Engineering Seismometer Ground Pulsation Tester Detector SY-24

$158,709.99

$158,709.99 $238,064.99

Products Description

The SY-24 surface wave instrument is a set of 12/24 channel high-resolution, digital instruments with functions such as time-sharing sampling, stacking, filtering, signal enhancement, noise suppression, and real-time display of measured waveforms on site. It is based on the VR-f curve (i.e. dispersion curve) or VR- λ R-curve.

The intrinsic relationship between VR-f curve or variation pattern and underground geological conditions, through the inversion interpretation of dispersion curve, can obtain the propagation velocity VR of Rayleigh waves in different depth ranges underground and the geological structure within a certain depth range, thereby evaluating the physical properties of the site or soil.

Widely used in engineering geological exploration in fields such as railways, bridges, water conservancy, transportation, electric power, and urban construction, it can also be used for resource exploration in fields such as oil, coal fields, uranium mines, and groundwater.

Applications

* Detecting fault zones, collapse columns, goaf, cavities, collapses, landslides, and karst caves;
* Energy geological exploration and underground building detection;
* Classification of foundation soil types, evaluation of reinforcement treatment effects, and inspection of roadbed quality;
* Divide the weathering zone of the bedrock based on the burial depth of the bedrock and the undulating morphology of the bedrockinterface;
* Non destructive testing of the quality of highways, airport runways, bridges, foundation piles, etc;
* Survey of the sliding zone and undulating shape of the sliding surface of the landslide mass;
* Underground buried objects, ancient tomb sites, caves, and goaf surveys;
* Detection of dam hazards in large and medium-sized reservoirs;
* P-waveand s-wave (shear wave) velocity well logging;
* Seismic refraction wave and reflection wave exploration.

Technical Data

Name	Dtails
Channels	12channels/24channels for option
Display	10.1-inch high-definition and high brightness color touch screen
Sampling interval	0.005ms～10ms
Sampling points	512～32768
Time consistency of each channel	≤1 Sampling interval
Amplitude consistency of each channel	<3%
Frequency	1～10000Hz
A/D Conversion accuracy	24 bits
Output Impedance	≤10kΩ
Trigger Mode	Pulse, break-make
Delay	0～8100ms option
Detector	50Hz;40dB
Storage Capacity	32G
Interface	Support U disk, mouse, keyboard
Working temperature	-10℃～+42℃;Humidity:<90%
Storage temperature	-20℃～＋60℃
Power supply	DC 12V(Built-in Lithium Battery≥ 16 hours), Charging Voltage220V±10%
Volume	323×275×135(mm)
Weight	3.5Kg
